Pressed Part.
How can Nikon’s leading laser scanning technology streamline your inspection process, saving you valuable time, money and resources.
-
Laser Scan.
Guarantee high productivity and superior non-contact measurement of freeform and geometric surfaces without compromising on small details – no matter the size or material.
-
Global Comparison.
Part-to-CAD inspection compares the acquired point cloud with nominal CAD data, resulting in crystal-clear geometric deviation displays. Freeform surface inspection is ideal for studying material springback and shrinkage phenomena and to verify that the shape of the part is within geometry specifications.
-
Focus Inspection.
Focus Inspection is today’s reference for point cloud inspection. It manages acquired point clouds and performs part-to-CAD comparison and advanced feature inspection. The software covers a wide range of inspection applications and offers stunning performance, an intuitive user interface, and standard macro functionality to automate the entire inspection process.
Scan.
The Model Maker Nikon H120 laser scanner is the most accurate handheld scanner on the market with a patented ESP technology.
-
Seamless high performance inspection is realized through the class-leading capabilities of the ModelMaker H120 scanner to measure small details with high accuracy on large parts in a short timeframe.
-

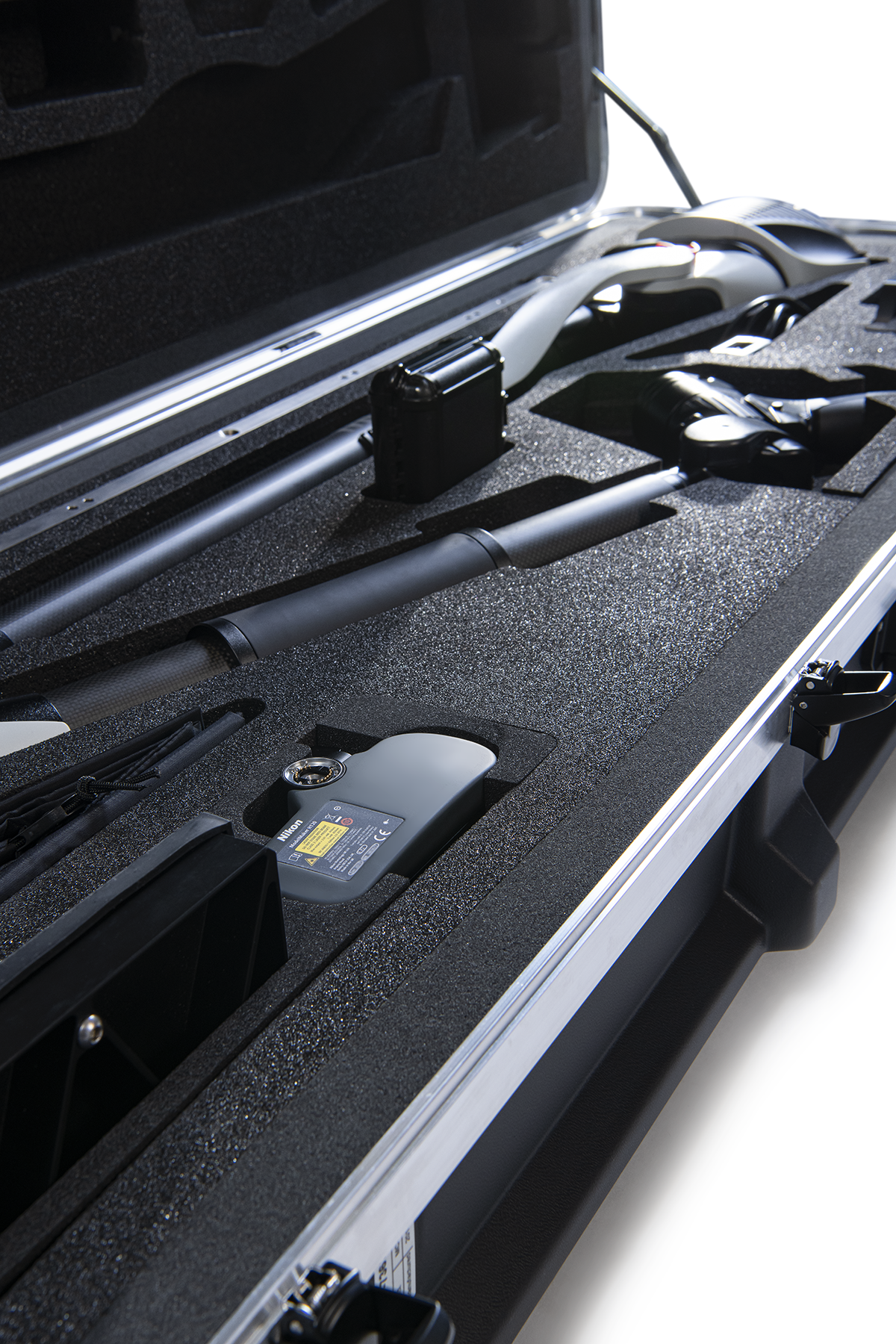

With quick connection to a variety of mountings, users can define exactly where and for what application the system is used. Taking the system to the part that will be measured or on the production line saves valuable time and organization, allowing users to get the results they need quickly.
-
To provide total confidence in the solution, every delivered combination of ModelMaker H120 and MCAx S arm receives a system certification of the scanning performance according to ISO 10360-8 Annex D.
Model Maker H120 Specs
-
MULTI-PROBING READY
Large probe clearance Intelligent auto-switching between scanner and probe.
-
INSTANT PRODUCTIVITY
Zero warm up temperature compensated.
-
DATA COVERAGE
Low noise blue laser ESP4 real-time laser optimisation.
-
INNOVATION
Premium Nikon lens contrasting full FOV red laser range finder.
-
SIMPLE SETUP
Integrated repeatable quick-release locking connector plug & play – no network configuration needed.
-
DETAIL AND SPEED
450 Hz frame rate
2,000 points per line
35 μm point spacing
120 mm laser line
0.007 mm accuracy
